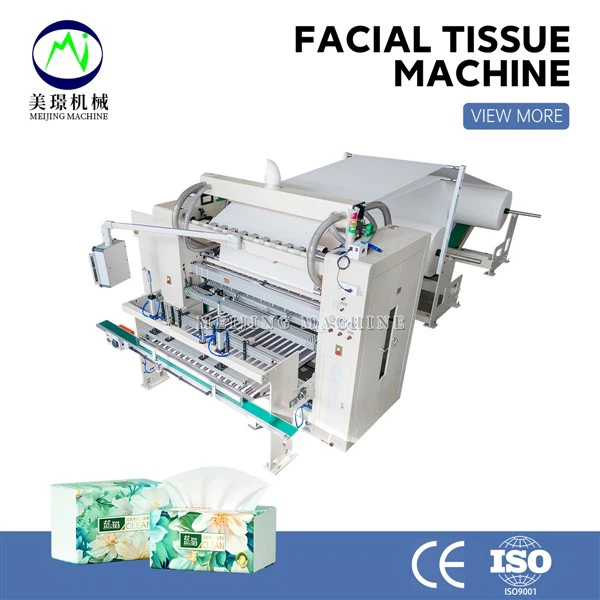

Face Tissue Manufacturing Machine

Description

1.Machine Model: FS-FCS210/2-10
2.Application: To produce V folded Face Tissue,Facial Tissue Products, Hand Towel
3.Machine Speed: 1000-1200 sheets/min/line
4.Siemens PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Download

Performance Description

Main Technical Parameter

Products Introduction

This Face tissue manufacturing machine is very good running performance, and used to produce V folded facial tissue paper and hand towel products. The machine folding speed is 6000-7000pcs/min.

The working principle of Face Tissue Manufacturing Machine:

1. It is composed of saw belt and pulley, and touching screen is equipped with product size adjustment device.

2. Automatic counting function with neat output requires 2 workers to transfer the paper towel log to the packaging machine

3. Dislocation count, adjust the count control instrument,

4. Imported air knife, smooth cutting surface, long service life, to protect your rights and interests.

5. Adapt to the production of all kinds of tension base paper.You can roll the pattern on the paper, the pattern is clear.

6.The Raw materials are sent to The calender by The belt.

Main Parameter

Machine name	FS-MJ-Face Tissue Manufacturing Machine
Max width of raw paper	11300/1500/2000mm
Output direction cutting length	180/190/195/200/210, other sizes to be specified
Speed	100-130m/min(1200sheets/min/lane)
Max outer diameter of raw paper	1200 or 1500mm, other sizes to be specified
Web feeding protection	Automatic web thickness monitor
Upper blade structure	Patent-tech spiral blade cutting structure
Bottom blade structure	Patent-tech with suction holes at the blade edge
Drive type	separated motor drive
Procedure control	PLC Siemens
Folding type	V fold
