M Fold Tissue Paper Machine

Description

1.Model: SZ(210-240)/2-10 V / MHand Towel Lamination Machine
2.Application: To produce V / Mfolded Face Tissue,Hand Towel
3.Machine Speed: 1000-1200 sheets/min/line
4.PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

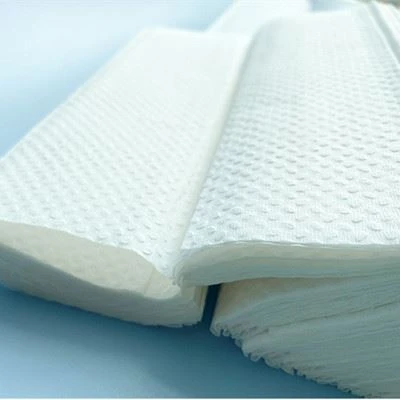

Full Automatic M Fold Tissue Paper Machine or V /Z/N Fold Hand Towel and Facial Tissue Folding Machine with Lamination, for hand towel products, there are different folding way, like M folded, C folded, V folded and Z folded, which matched different tissue paper folding machine.

1. The price of M Fold Tissue Paper Machine is determined by the quality.Because the price of the factory is lower than that of the trading company, the after-sales service provided by the factory is more efficient, which ensures that you will get a competitive price.

2. Two-year warranty and perfect after-sales service

3. Improve the speed, quality, performance and the quality of the sales team by taking the updated technology as the forerunner.

4. Excellent quality and speed, beautiful products

5. Automatic counting and stacking device has the advantages of high speed and accurate quantity

6. The machine can be equipped with embossing, gluing, laminating and printing devices

7. Welcome to consult the products you wanna produce and recommend you suitable machine.

Technical Parameter

Model	CS(180-220) M Fold Tissue Paper Machine
Finished products size	(180-220)×210mm (width is adjustable)
Jumbo roll size	Width800-1680mm 17~22g/m2×2(ply) Jumbo roll diameter ≤1200mm
Jumbo roll core inner diameter	76.2mm (Other sizes can be designated)
Machine speed	800-1000 sheets/min (set as per how many lines)
Vacuum system	11-30KW
Machine power	10-40kw, (380V, 50Hz)
Overall size	L×W×H =7× (1.2~2.8) ×1.8m
Weight of machine	6~10T
Embossment unit	steel to rubber roller, steel to steel roller
Embossment down roller	rubber roller, steel roller
Side embossment	Steel to steel, independent adjustment

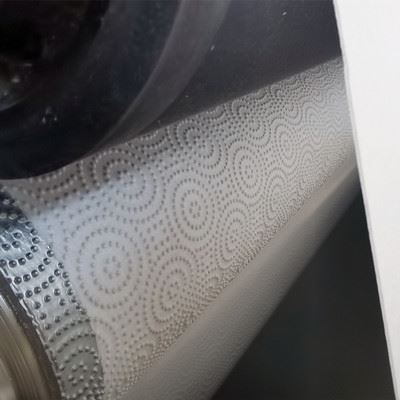

Lamination	Double embosing, and glue application
