Napkin Printing Machine

Description

1.Machine Model: CJ-ZD300
2.Machine Speed:160m/min
3.Option: Napkin Folding，Embossing，Calendering，Printing
4.Place of Origin: Foshan, China
5.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

product-4059-2877

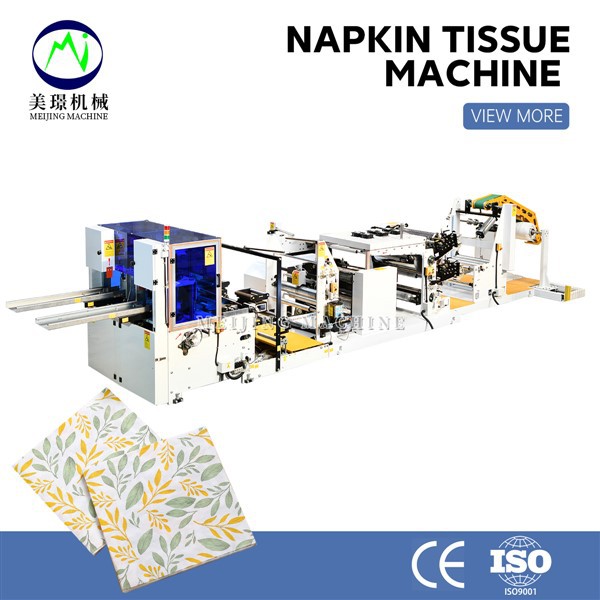

The Full Automatic Napkin Printing Machine is used to slit jumbo roll and folded into napkin tissue products.

1.The machine adopts electronic counting to ensure correct, easy to pack and fold into 1/4.

2. Advanced technology, stable working performance, fast running speed, automatic counting, is an excellent and advanced equipment for the production of napkins

3. Napkin production speed is controlled by the driver.

4. Roll the paper into a square or rectangular napkin

5. The folding mode can be changed according to the requirements of customers.

6. Independently developed PLC control system and designed advanced servo drive.

Technical Paramters

Raw Material Width	200-400mm (depends on machine model)
Raw Material Dia	1000-1200mm
Paper core diameter	76.2 mm
Folding Way	1/4, 1/6, 1/8,
Unfolding Size	300*300mm
Folded Size	150*150mm
Production Speed	160m/min
Counter	Fully electronic counting
Main drive	chain and chain drive
Power	7.5kw 380v 50hz
