Napkin Tissue Machine

Description

1.Machine Model:CJ-ZD140-600 Napkin Paper Machine
2.Application:This Machine is used to fold 1/4 napkin paper tissue.
3.Machine Speed;450-550sheets/min
4.Auto acounting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

product-4059-2877

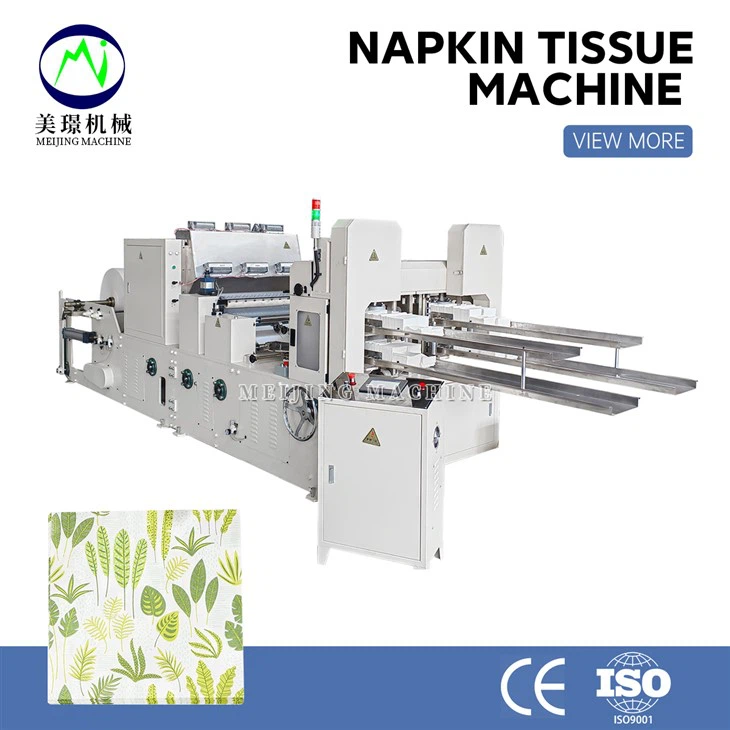

The Auomatic Napkin Tissue Machine is used for processing the paper material by embossing, folding,electric counting,cutting into square napkin,.Automatic no need manual folding ,the embossing type can made by customer's need to made different Clear and beautiful Pattern.

1. with steel to wollen Embossing,pattern is stereoscopic

2. automatic raw paper roll loading function

3. automatic stop when paper broken,avoiding producing non-conforming products

4.automatic stop when fault of unreeling.

5.front and back jog button,safely and conveniently to lead raw paper

6. Automatic Accounting function for easy operation

7. Finished product come out with finger

8. with embossing unit to produce soft and nice embossing pattern napkin tissue

Main Parameters

Machine Name	Automatic Napkin Tissue Machine
Paper material width	200-600mm(depends on size and model)
Paper material dia	1200mm
Folding way	1/4, 1/6, 1/8
Production Speed	160-180m/min
Embossing Unit	steel to steel, steel to woolen
Calendering unit	steel to steel,steel to rubber
Jumbo roll loading	Auto pneumatic loading
Printing unit	1-3 colors
Power	Main motor 5.5kw, Frequency-converting
