Serviette Tissue Making Machine

Description

1.Machine Model: CJ-ZD300
2.Machine Speed:160m/min
3.Option: Napkin Folding，Embossing，Calendering，Printing
4.Place of Origin: Foshan, China
5.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

product-4059-2877

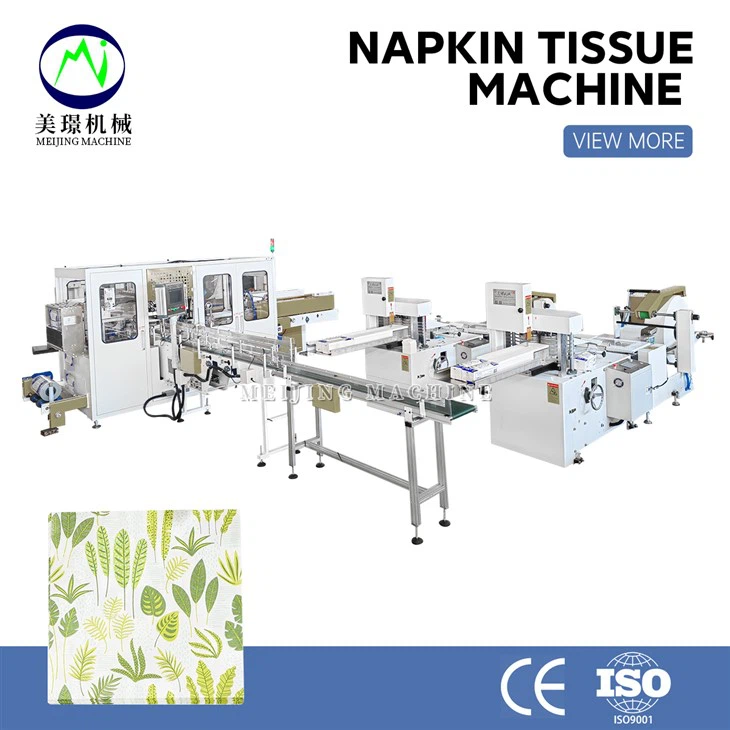

The Serviette Tissue Making Machine is designed to produce napkin paper tissue products, the Serviette Tissue machine with embossing unit and color printing unit to produce more nice and soft napkin tissue.

1. Serviette tissue making machine is used for embossing, electric counting and automatic embossing of 1/4 folded square napkins or 1/6, 1/8 and 1/4 folded napkins. Beautiful patterns required by customers can be designed

Automatic counting, very convenient

3. Coil/steel to steel embossed pattern, beautiful, cost saving

4.Accurate folding positioning, uniform molding specifications.

5. Color printing equipment.You can make all kinds of napkin machines on your request.

Parameter Information

Overall size	420022001800mm
Machine weight	3800kg
Width of jumbo roll	1200mm
Outer diameter of jumbo roll	Ø1100mm
Inner diameter of jumbo roll core	Ø76.2mm (3")
Unfolded size of finished products	300*300mm (tolerance ± 2mm)
Folded size of finished products	150*150mm (tolerance ± 2mm)
Folding unit	1/4 folded
Embossing unit	Steel to rubber, embossing pattern to be confirmed by customer
Calendering unit	Steel to rubber
Printing unit	2 colors printing
Raw material	18~25g/㎡, 1-3 plies
