Small Tissue Making Machine

Description

1.Model:FJ-DK 1575-3500D
2.Application:To produce bathroom tissue rolls,toilet toilet paper tissue roll, JRT Rolls
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

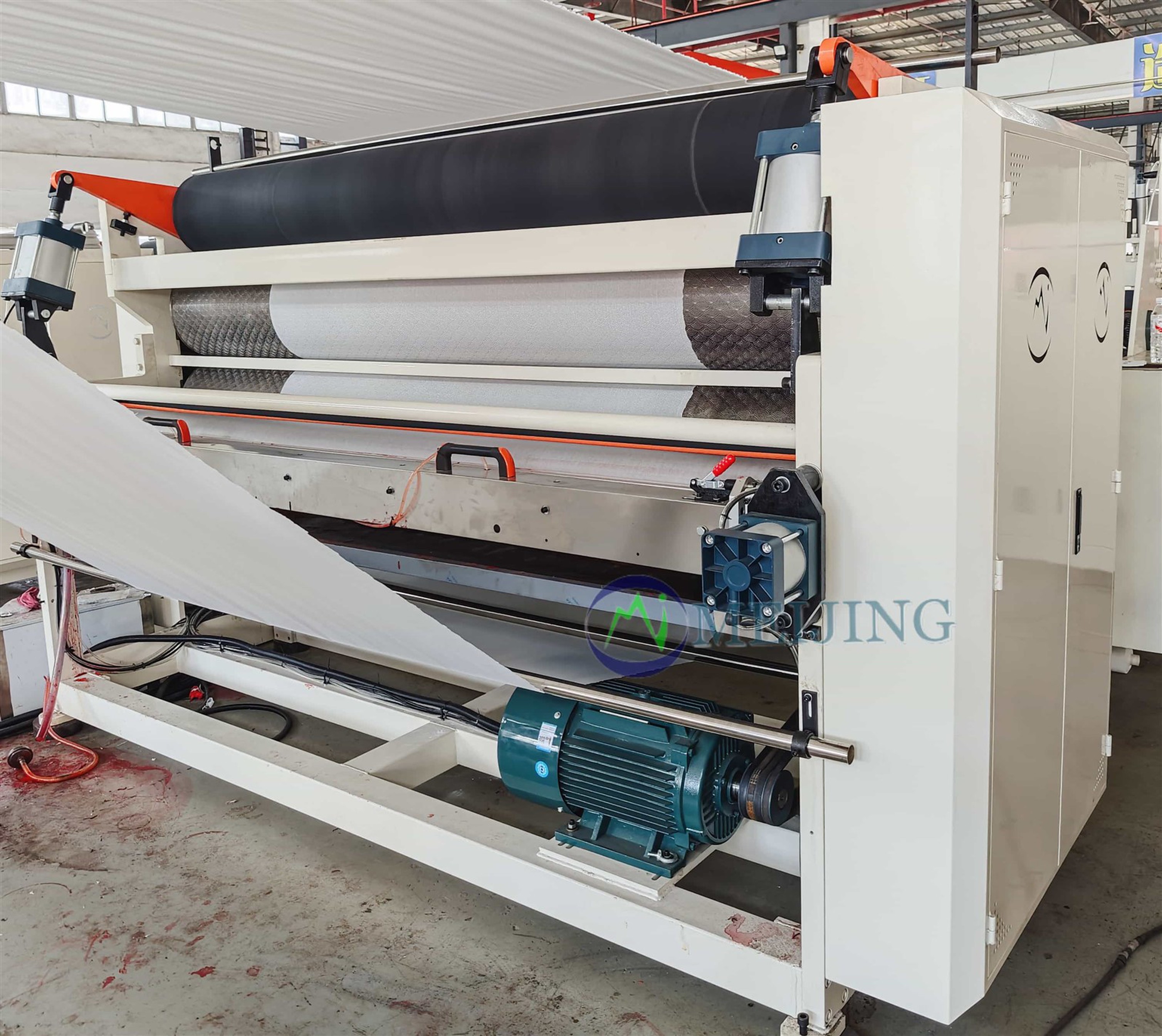

Small Tissue Making Machine

Full Automatic Small Tissue Making Machine is mainly composed of 3 parts: back stands, embossing unit (or glue lamination system unit) and main machine part (rewinding part). The machine is manufactured to produce toilet tissue roll, kitchen towel rolls and maxi roll on one machine.

1. More than 15 years of mature design and manufacturing experience, stable operation, simple maintenance,

2. Wall panel structure: steel plate structure, to protect the machine from being damaged.

3. Stepless transmission ensures uniform punching accuracy and paper roll length;The uniform packaging of products will looks good

4. Production process of Small Tissue Making Machine : unwinding - embossing - gluing - punching - rewinding - automatic core loading - tail gluing - trimming.

5. Electronic and pneumatic brake, more stable and high-speed in operation.

6. Man-machine interface, PLC control,

7. Simple operation;Frequency conversion synchronous belt transmission, independent servo motor drive.

Technical Parameter

Machine Name	Small Tissue Making Machine
Jumbol Roll width	1300~3500mm (customized), max. diameter 1500mm,
Speed	200-250m/min
Unwinding system	delivering paper with pneumatic wide belt, with individual tension control device for each roll of raw paper.
Jumbo rolls stands	2
Parameter setting	Touching screen
Programmable controlle	PLC Siemens
Main transmission power	Variable frequency converter
Driving system	Individual motor & frequency converters.
Counting system	Electric counter
Counting controller	Diameter & sheet counting controller
Motor	Three phase motor
power supply	7.5-22Kw, 380V, 50Hz or can be speciftied.
