Maxi Roll Making Machine

Description

1.Model:FJ-DK 1575-3500D
2.Application:To produce Maxi Roll tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Machine Description

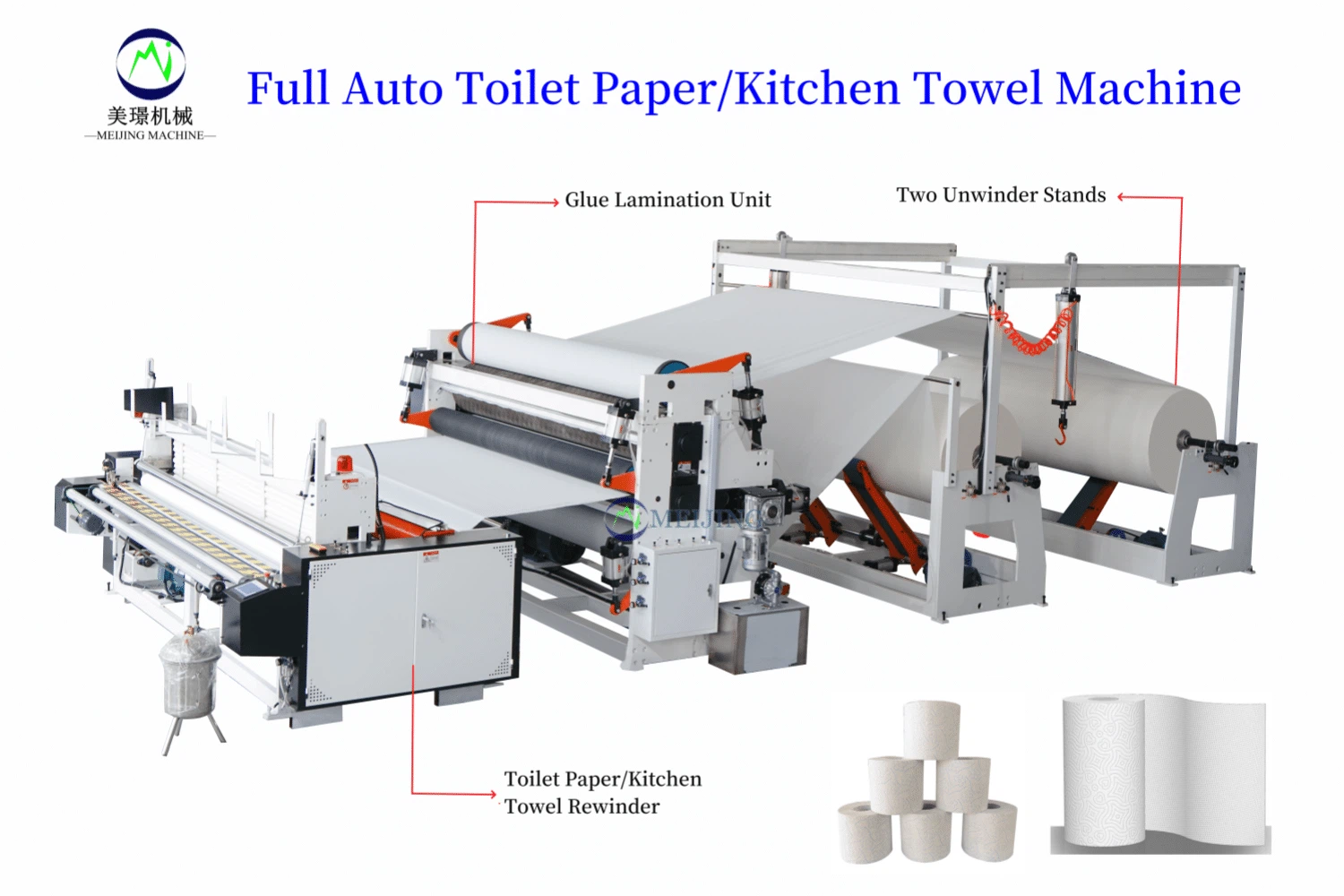

toilet paper rewinder machines

The Full Automatic Maxi Roll Machine is maded to produce household products maxi roll and toilet paper and kitchen towel (with glue lamiantion system unit).

1.The production speed is stable 200-270m per min

2.Perfect alarm system and powerful integrated control system to support remote terminal connection and detection;

3.Flexible and convenient processing of each functional unit driven by independent motor;

4.Paper cutting, accurate log diameter control system, accurate and convenient operation;

5. Perforation to ensure that the plate and pitch are accurate and stable, and the sheet distance is adjustable;

6. Each unwinding support is equipped with auto adjusting tension control system

7. Siemens PLC, large screen man-machine interface, optical electromechanical integration control technology,

8. Optional embossing fitting device, embossing device and automatic core feeding system.

9.The tightness of the winding is adjustable, it can produce paper rolls with different tightness.

10.When the previous paper log is under winding, the next paper core is ready.

11.When the finished log come to tail sealer, trimming, glue spraying sealing can be finished at the same time

12.Full embossing unit gluing compound unit, side embossing unit, need to be ordered by the customer.

Technical Parameter

Model	1800-2900 Maxi Roll Making Machine
Jumbo roll width	1800-2900 mm
Jumbo roll diameter	1500mm
Jumbo roll core size	Φ76.2 mm, shaftless type (To order)
Unwinding Stands No.	1-4
Finish Paper Tissue Roll diameter	90-300mm
Perforation distance	90-250mm
Rewind type	Starting-stop
Parameter setting	Touching Screen
Control system	PLC, Inverter,
Machine speed	200-270 m/min
Embossing Unit	Steel to rubber
Glue Lamination Unit	Enclosed Scrapping type

Some Details

Glue Lamination Unit

Full Embossing Unit

Finished Products

Maxi Roll

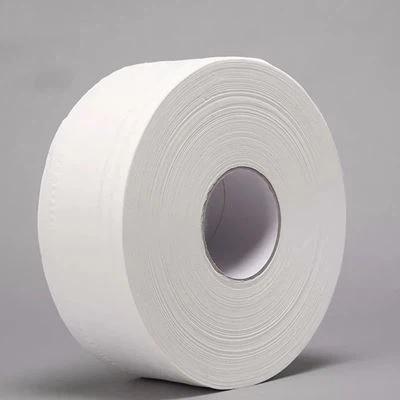

Industrial Roll

Company Introduction

1.We guarantee all the machines we made for 2 years.Free replacement of damaged spare parts within two years.After two years, we will track the performance of your project and provide technical and quality support for you.

2. If you need to go to your factory to repair the Toilet Paper Machines for you, the buyer should pay the round-trip air ticket, hotel, catering and 75 dollars per person per day for the engineer of the seller. This is the industry rule, and our technicians promise to train the staff for you and teach you how to operate the machine, which can be learned easily and quickly.

3. Engineers and technicians are always on line to solve problems encountered in the production process for you
