Toilet Paper Tissue Rewinder Machine

Toilet Paper Tissue Rewinder Machine

Description

1.Model:FJ-DK 1575-3500D
2.Application:To produce bathroom tissue rolls,Kitchen Towel Rolls,toilet paper tissue roll, JRT Rolls (Maxi Rolls) on one machine
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Performance Description

Main Technical Parameter

Products Introduction



Toilet Paper Tissue Rewinder Machine

The full automatic Toilet Paper Tissue Rewinder Machine is using advanced SIEMENS PLC program, engineers keep learning new technology and new process, paperless core and rewinding effect to produce toilet paper and kitchen towel products.



1. The new designed Toilet Paper Tissue Rewinder Machine has been replaced the traditional fine tuning of waterline, reducing the loss of paper tail and reducing product cost.

2.The whole machine has been tested in the market for many years, and each operation is faster, which greatly improves the production efficiency.

3.Easy Operatet, use point-to-point embossing, clear and beautiful patterns, light weight.

4.Auto trimming, spraying and sealing are completed simultaneously during operation.

5. Independent stepless adjustment, monitoring at the same time of production, all functions can be independently controlled.

6. The finished products in the rewinding process to the different degree of loosening and loosening, to solve the problem of the finished products because of the long storage of paper core loose.



Technical Parameter

Machine Name Toilet Paper Tissue Rewinder Machine

Jumbol Roll width

1300~3500mm, max. diameter 1200mm (customized)

Speed

200-250m/min

Unwinding system

individual tension control device for each roll of raw paper.

Jumbo rolls stands

1-4 stands

Parameter setting

Touching screen

Program controlle

PLC Siemens

Transmission power

Variable frequency converter

Driving system

Stepless gearbox, synchronous belts and chains for transmission

Counting system

Electric counter

Counting controller

Diameter & sheet counting controller



Some Details

Toilet Paper Tissue Rewinder Machine
Glue Laminattion Unit
Toilet Paper Tissue Rewinder Machine

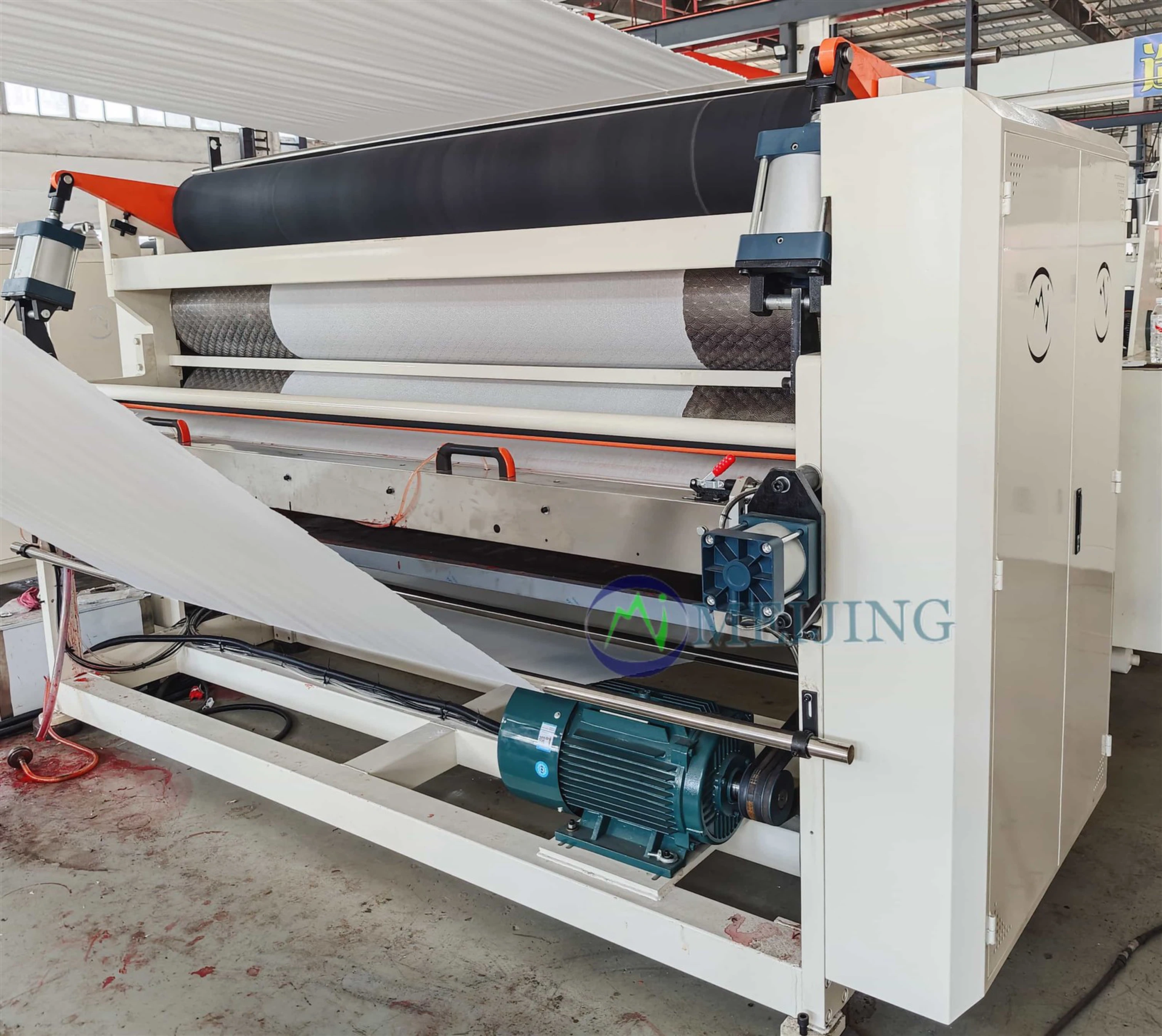

Full Embossing Unit

Finished Products

Toilet Paper Tissue Rewinder Machine

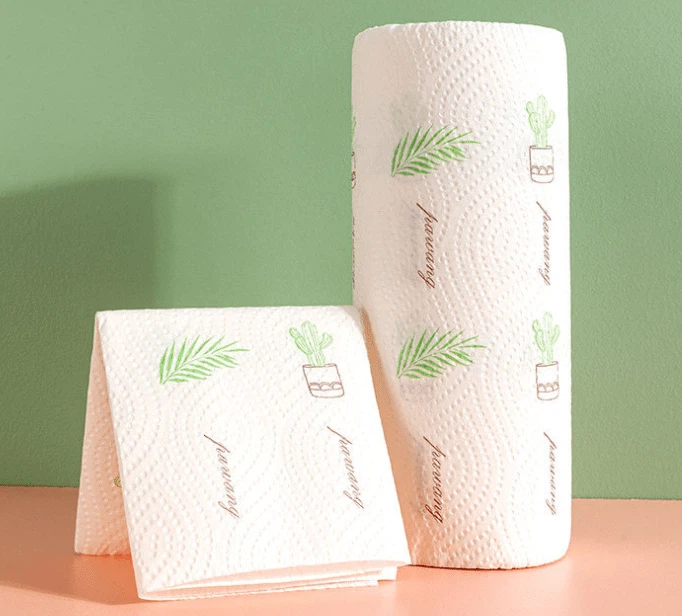

Kitchen Towel
Toilet Paper Tissue Rewinder Machine
Toilet Paper

Company Introduction



Foshan Meijing Machinery Manufacture Co., Ltd


1. The operator shall arrange to go abroad for technical training and equipment maintenance at any time.Solve customer's problems in production quickly.

2. More than 15 years of production and supply of toilet paper processing machinery, has its own factory in Foshan area, freight forwarding company, raw material partner.

3. Adhere to the research and development of machines, constantly improve production capacity, and develop new Toilet Paper Tissue Rewinder Machine to meet the special needs of customers

4. Rigorous machine quality, with superior performance, has obtained the European CE certification.Quality assurance, you can rest assured to buy
