Tissue Roll Making Machine

Description

1.Model:FJ-DK 1575-3500D

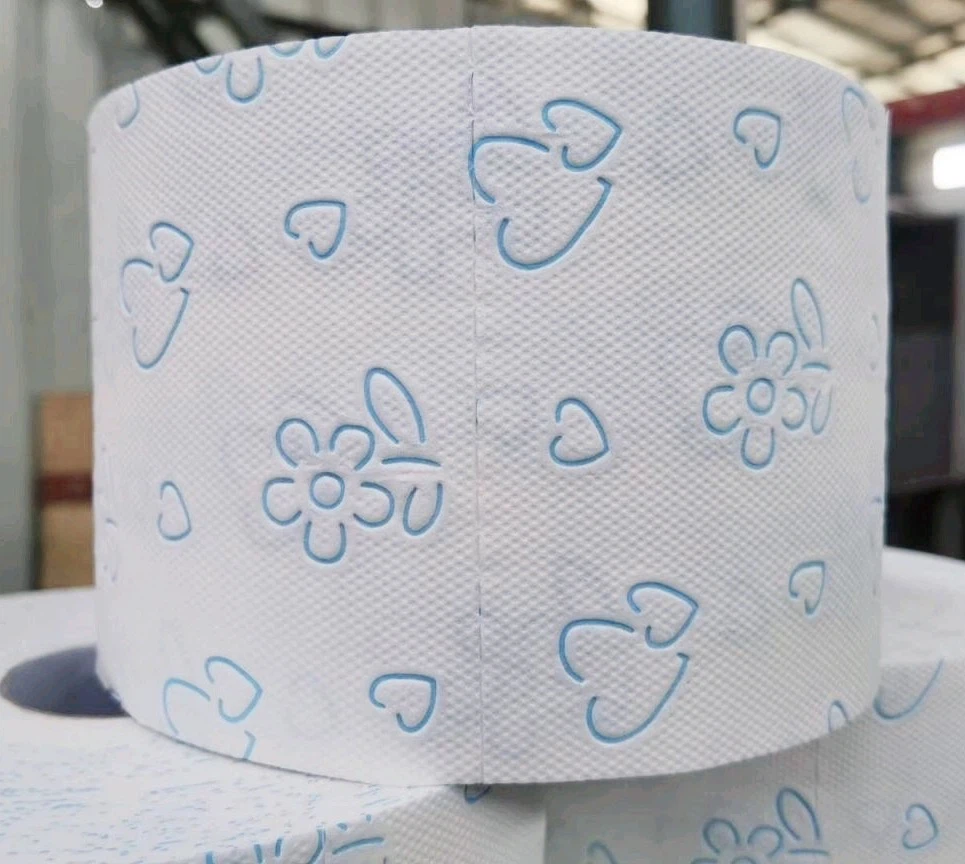

2.Application:To produce bathroom tissue rolls,kitchen towel roll, small tissue roll, toilet tissue paper roll,Maxi Rolls , JRT Rolls
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

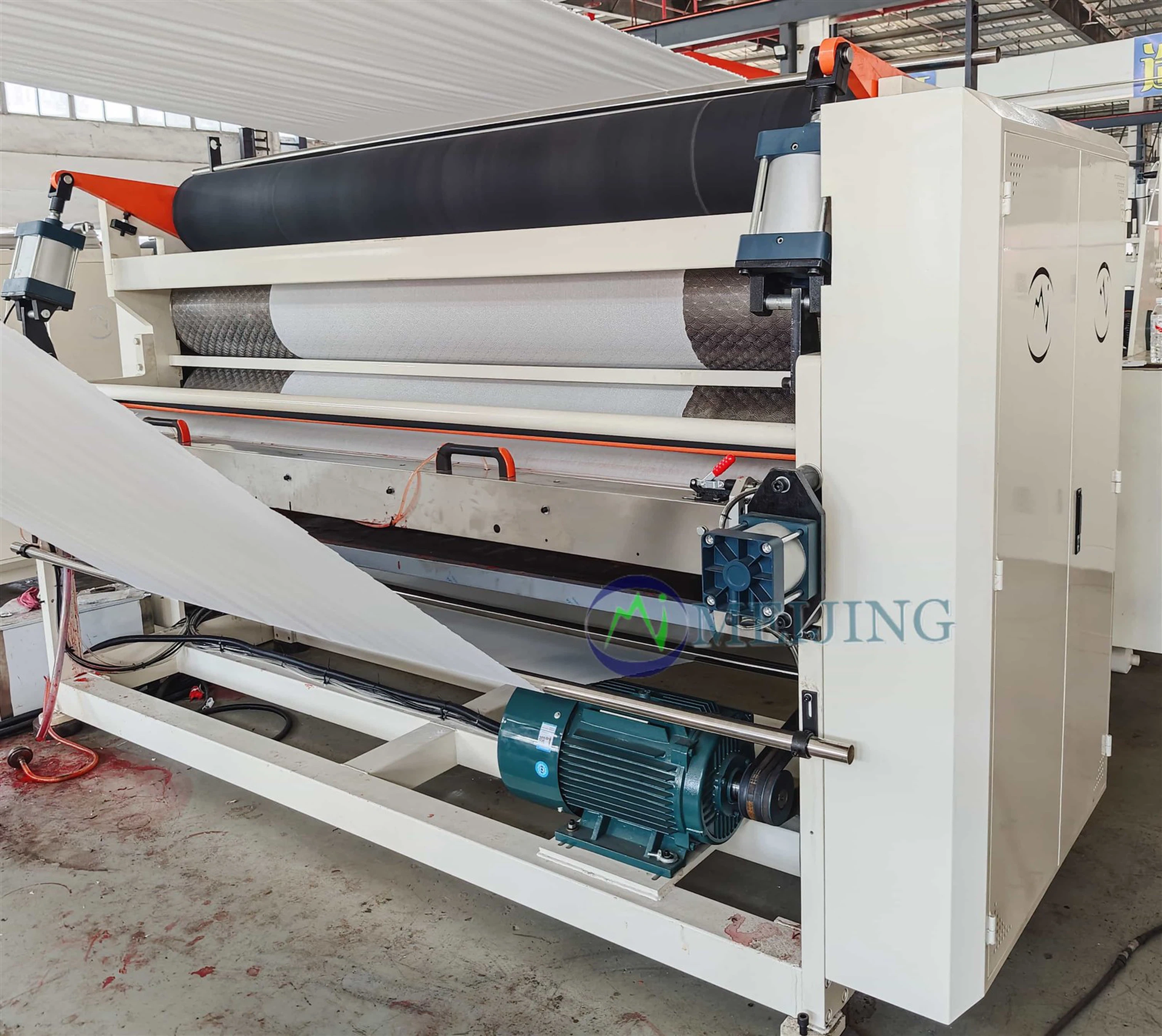

Tissue Roll Making Machine

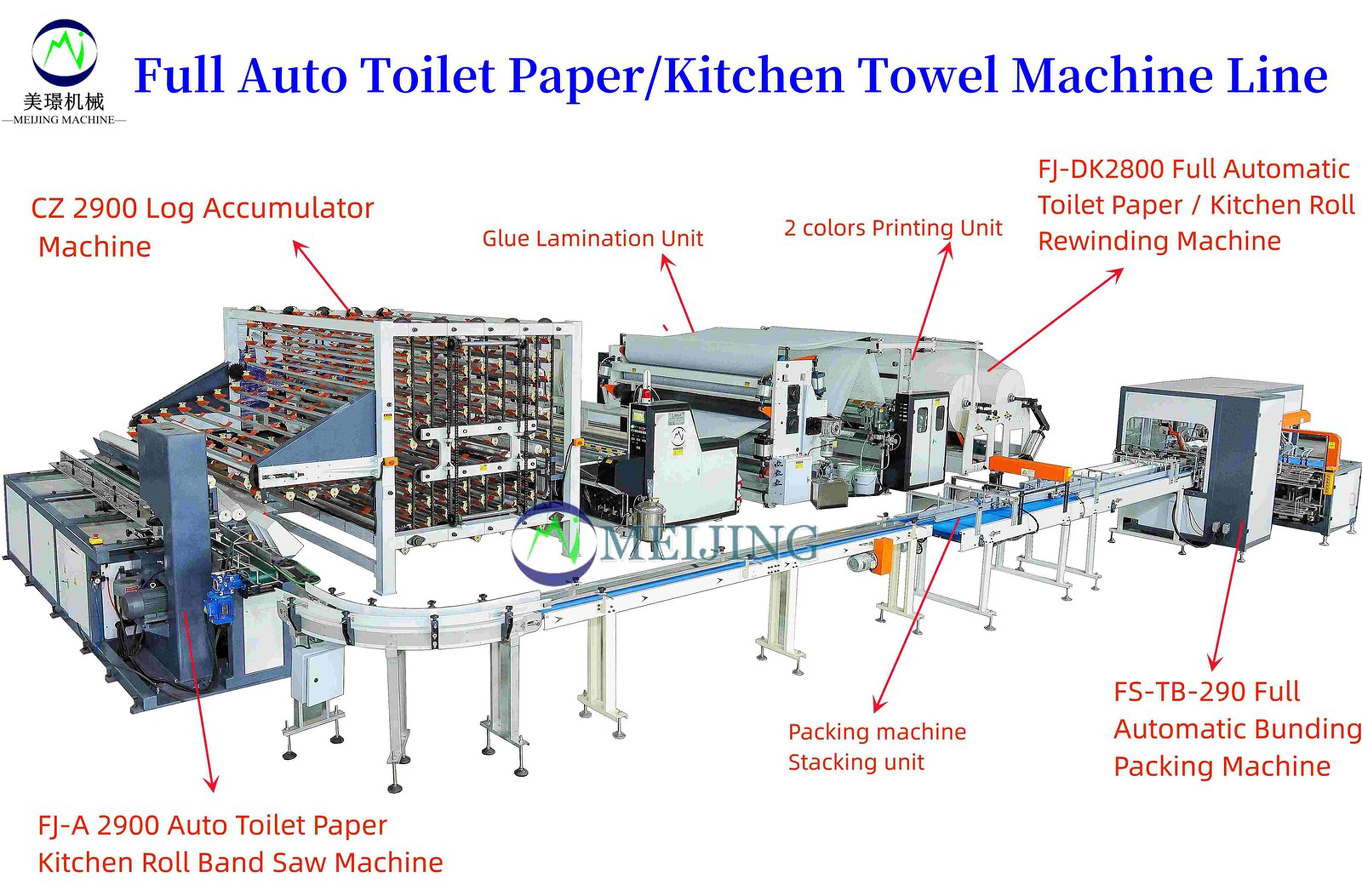

Full Automatic Toilet Tissue Roll Making Machine is wallboard type structure to produce toilet tissue products,toilet paper/kitchen towel and maxi roll, The machine runs smoothly at high speed, and the internal parts of the machine are protected.

1. Advanced PLC programmable control, parameter failure will be displayed on the touch screen.

2. The perforation distance can be adjusted to meet the requirements of different distances.

3. Automatic core feeding system, automatic push after winding, automatic winding after winding.Automatic trimming, spraying and synchronous sealing.

4 High precision spiral knife, low noise, gear box,

5. Leave 10-18mm in the tail for easy rewinding and cost saving.

6. Pneumatic paper loading, delivering paper with pneumatic wide belt.

Technical Parameter

Model	FJ-DK-2800
Raw Material Width	2800mm
Finished Rolls Dia	90-280mm (degree of tightnesss adjustable)
Finished Roll Core Dia	32-50mm
Raw Core Dia	76.2mm
Speed	250m/min
Parameter Setting	Touching Screen
Embossing	Steel to Rubber /wool/steel roll(to be ordered,
Perforating	90~160mm (Pneumatically separating unit-Optional)
Unwinding	1-4 ply
Driving	Independent motor drive, with individual tension control device.
