Toilet Tissue Converting Machine

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

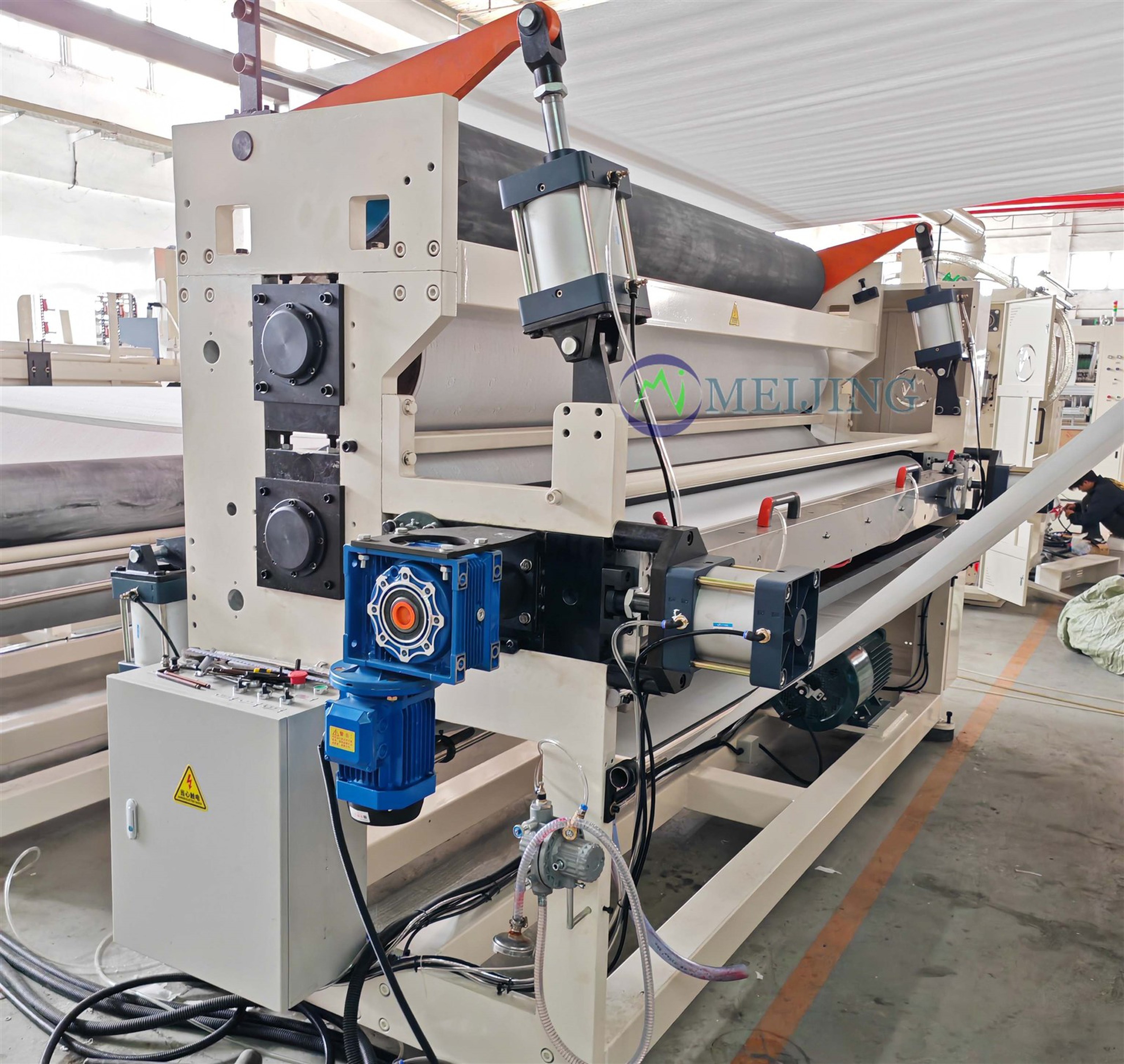

Toilet Tissue Converting Machine

Toilet Tissue Converting Machine is computer programming technology and adopted to realize automatic paper tube change (or coreless automatic paper roll), automatic glue spraying, edge sealing, and trimming.Unique design upward pneumatic paper loading sets,greatly lightens the labor intensity of the workers, easy and fast change jumbo rolls(two sets),having left and right adjusting devices.Independent motor drive, delivering paper with pneumatic wide belt.Independent tension control device, seting the tension on touching screen, easy operation.

1.The rear frame and the main engine are fully variable frequency synchronous control the winding tightness, no chain drive; Main engine synchronous belt transmission.

2.Three horizontal rear brackets, pneumatic loading system, wide drive flat belt; each giant wheel can be adjusted independently.

3.Double embossing rollers can be made according to customer's requirements, and it can be matched with gluing compound device to produce kitchen paper, and it can be matched with 1-3 color printing equipment.

4.Automatic core feeding system, automatically push logs after winding.

5.Each unwinding stands is draiven by independent motor,the motor is controlled by an independent frequency converter. Improve product quality. The automatic toilet paper rewinder is an ideal equipment for producing toilet paper.

Technical Parameters

Name	toilet tissue converting machine
Model	FJ-DK 1575/2200/2800/3000B
Jumbo roll width	1800/2200/2800/3000mm
Jumbo roll dia	Ø1500m
Finished products Inner core dia	Ø30-Ø76.2mm
Finished Paper Dia	100-300mm
Production Speed	200~240m/min
Jumbo roll holder	1-3 Stands(can be specified)
Program Controller	PLC (Siemens)
Parameters Setting	Touching Screen (Siemens)
Pneumatic System	5HP Air Compressor,
Main Power	7.5-35kw
