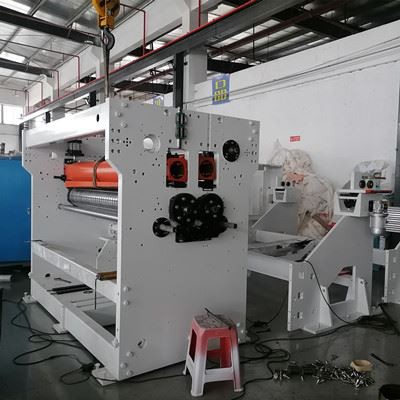

Hand Towel Folding Machine

Description

1.Machine Model: FS-FCS210/2-10
2.Application: To produce V folded Hand Towel Products,
3.Machine Speed: 800-1200 sheets/min/line
4.Siemens PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

Full Automatic Hand Towel Folding Machine can be equipped with two sets steel to steel embossing units for hand towel,also can be equipped with edge embossing for facial tissue.

1. We can make Hand Towel Folding Machine from 4 lanes-10 lines etc. depends on the requests for production capacity

2. It will cut the base paper made of different materials into "V" shape

3. For the production of bag packaging, box paper extraction paper for daily use toilet paper, disposable consumer goods everyone needs, a wide range of USES, the market prospect is good

4. Stable operation and high efficiency.Suitable for the first time investment novice, immediately pay back the money

5. Absorbing vacuum absorption function of foreign technology, cutting, folding and counting,saving time and effort.

6. Auto count and output the whole line, line by line, the position will not move

7. Frequency conversion control to save energy.hand towel folding machine stop washing if the assemblies got broken

7. Procedure: Unwinding → Embossing → cutting → interfolding → output

Ancillary Equipment:

1. Hand Towel Cutting Machine (optional)

2. Hand Towel Packing Machine(packed in poly bag or carton box)

Some Details

Machine Model	FS-F-2L	FS-F-3L	FS-F-4L	FS-F-5L	FS-F-6L
Unfolded Size of Facial Tissue	180~210 × 210mm (width is adjustable)
Folded Size of Facial Tissue	(90~105) × 210mm
Parent Roll Diameter	Φ1200mm
Parent Roll Width	420mm	630mm	840mm	1050mm	1260mm
Core Dia. of Parent Roll	Φ 76.2mm
Speed(sheets/minute)	2000~2400	3000~3600	4000~4800	5000~6000	6000~7200
Slitting System	Pneumatic dot slitting
Vacuum System	15-35KW(depend on final configuration)
PLC Controller, Inverter	SIEMENS
Main Motor Power	7.5~25KW (depend on final configuration)
Dimension (L×W×H)	5200×(1220~2420)×2000 mm (depend on final configuration)
Weight	5000~12000kg (depend on final configuration)
