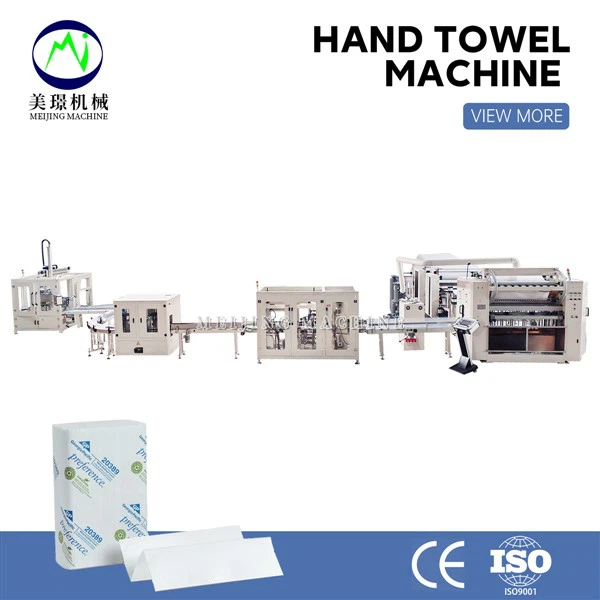

Hand Towel Paper Manufacturing Machine

Description

1.Machine Model: FS-FCS210/2-10
2.Application: To produce V folded Hand Towel Products,
3.Machine Speed: 800-1200 sheets/min/line
4.Siemens PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Expoot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

Full Automatic Hand Towel Paper Manufacturing Machine can produce Either V-folding paper towel or facial tissue. It is a two-function machine.

1.Hand Towel Paper Manufacturing Machine is a folding machine that produces V folding rectangular towels.

2.PLC and touch screen control panel control, English and Chinese control, convenient for workers to operate.

3.Cut the base paper into large rolls of desired width. Cut out of the folding machine and fold into a V-shaped folding towel.

4. Auto counting paper towels arranged in order and output, variable speed and quick winding.Can adapt to paper tension.

5. Disconnection and winding will affect the auto stop function;

6. Pneumatic paper feeding, air pressure can be adjusted, the unwinding belt can be adjusted pneumatically. When the paper roll is used up, the machine will automatically slow down and stop.

7. Internal spiral scissors cutting, paper force can be manually controlled

8. Wide product width range, easy to produce products of different sizes, good sales

9. Steel to rubber embossing (2 sets);clear embossed patterns;gluing compound can be configured.

Technical Parameters

Hand Towel Paper Manufacturing Machine
Hand Towel Paper Manufacturing Machine
Product fold way	N , V, M folded
base paper gsm	18-25g/M2 double layers, 35-48g/M2 single layer
base paper width	710mm-1400mm
basic paper diameter	1200mm-1500mm
product specification	210mm,215mm,220mm,225mm,230mm,240mm±1mm;
Length cutting length	adjustrable
Install power	AC380V 50HZ 5.5-7.5KW(main motor) 15KW-22KW(vacuum pump)
Paper feed system	1-2, 1-2 paper feed shelf, buffer cylinder control
Speed	N fold 230m/min 4-6 fold 150m-200m/min
Upper gum compound device	Hang glue/spray adhesive
Embossing unit	steel to steel,
